Description
Pipe support locations are one of the most common points of failure in insulated piping systems. Without proper insulation at hangers and supports, systems are vulnerable to thermal bridging, condensation, and, eventually, corrosion under insulation (CUI).

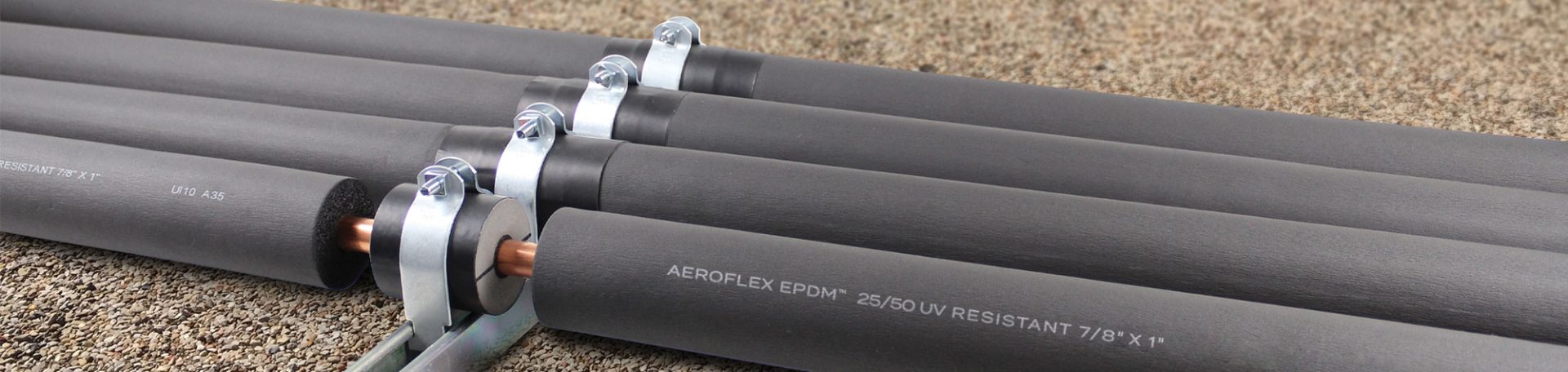

Aerofix® Insulated Pipe Supports are patented and engineered to maintain the integrity of insulation and vapor barrier at pipe hanger locations. Unlike some inserts or field-fabricated solutions, Aerofix provides seamless EPDM thermal performance and zero-permeance (zero-perm) moisture resistance.
Designed for use with elastomeric insulation systems, our insulated pipe supports ensure consistent insulation thickness and eliminate compression at support points—helping engineers and contractors maintain system performance from specification through installation.

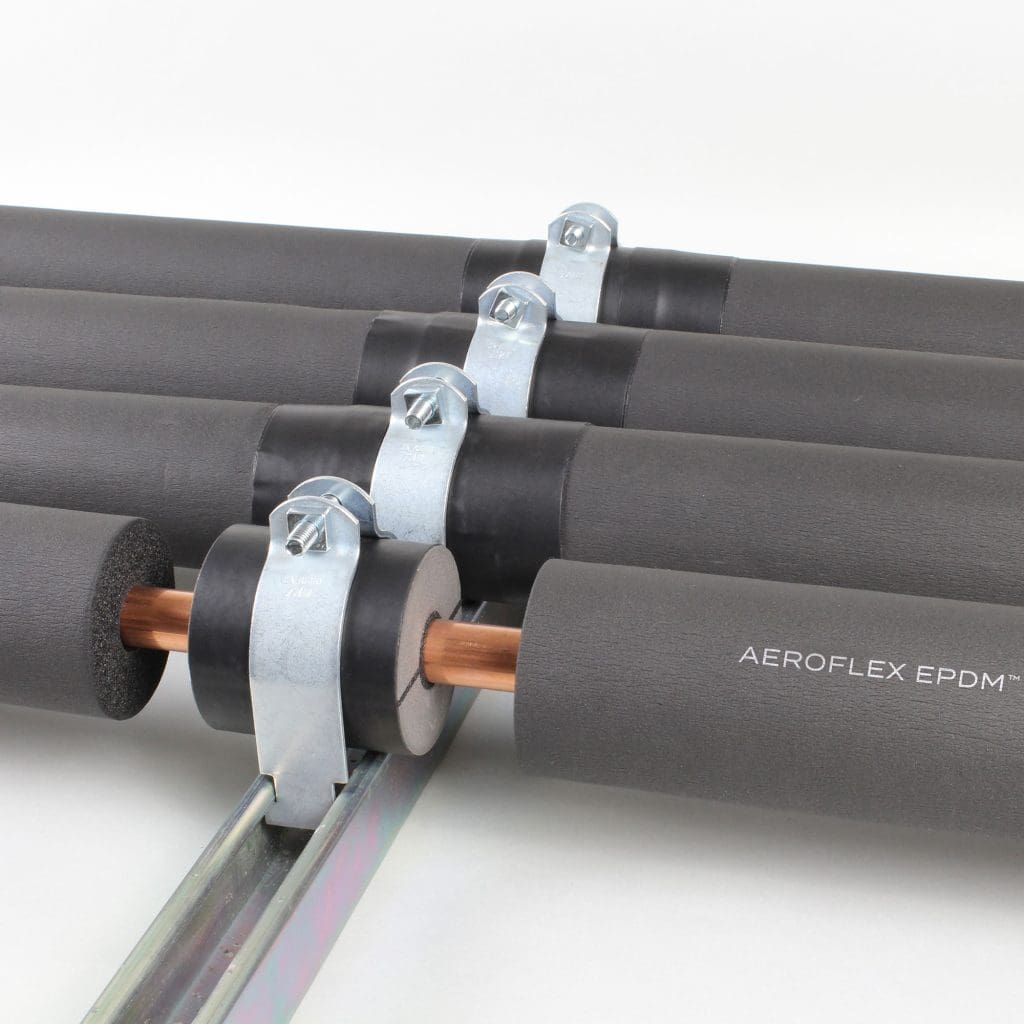

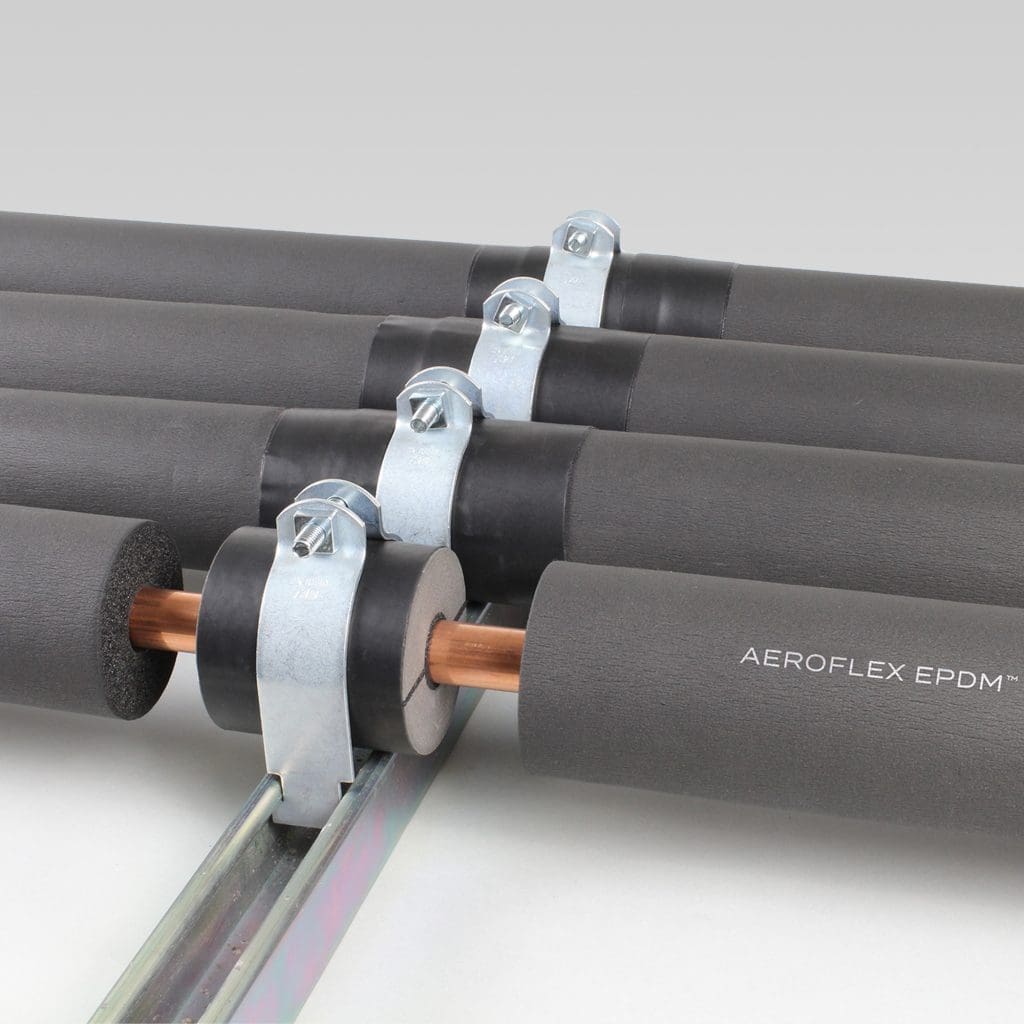

When specified as part of a complete insulation system, Aerofix helps protect long-term energy efficiency, reduce maintenance risk, and ensure reliable mechanical system performance. Our pipe supports may also be used with trapeze (strut), split-ring, clevis, roller, clamps, and straphangers.

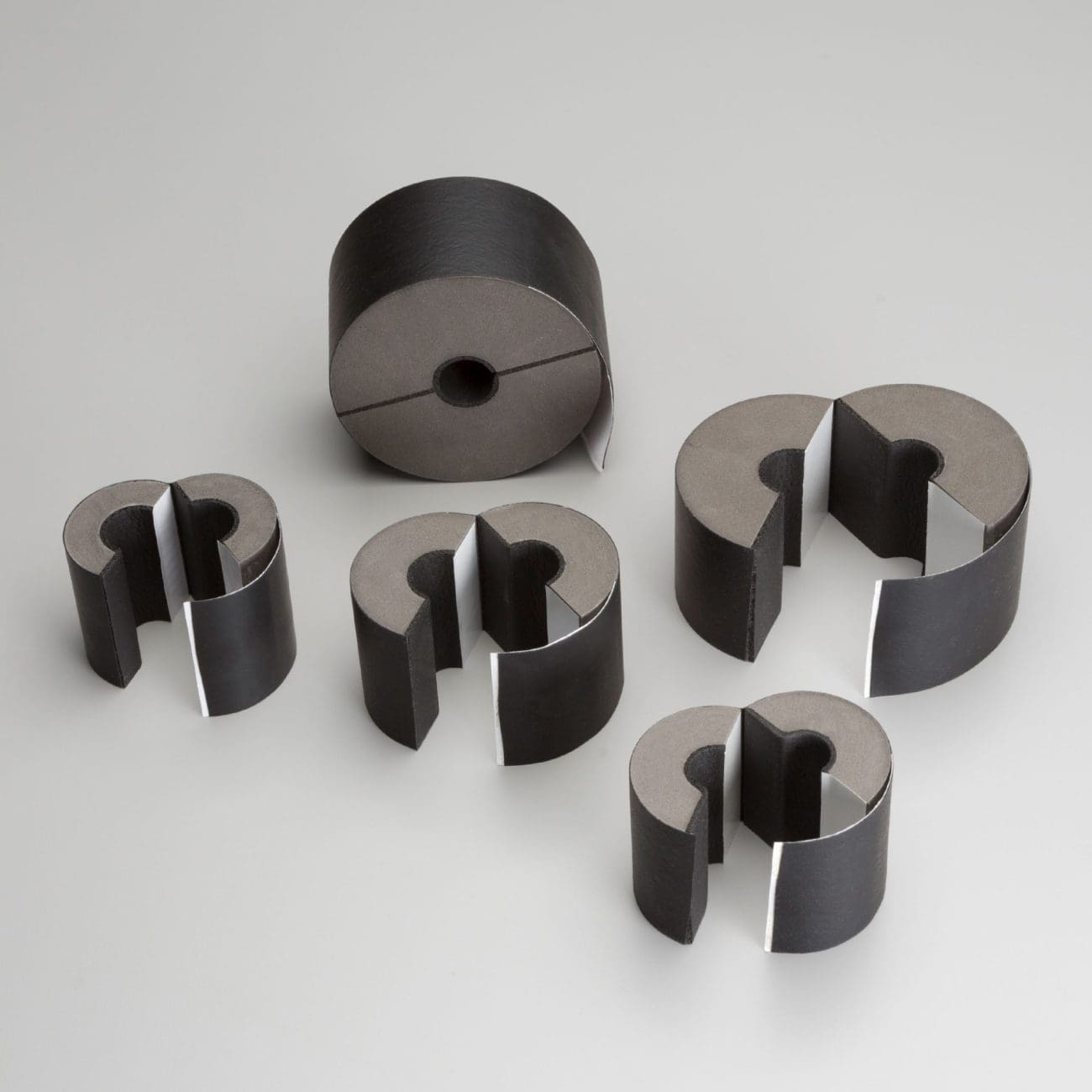

Aerofix is available in a wide range of pipe diameters and thicknesses up to 12-inch IPS and 2-inch wall thickness. See data sheet for more details.
Specification Compliance
Aerofix insulated pipe supports are designed to support compliance with key industry standards, building codes, and material transparency requirements for commercial, institutional, and industrial projects.
Energy Efficiency & High-Performance Building Standards
- ASHRAE Standard 90.1, Energy Standard for Buildings Except Low-Rise Residential Buildings
- ASHRAE Standard 189.1, Standard for the Design of High-Performance Green Buildings Except Low-Rise Residential Buildings
- IECC, International Energy Conservation Code
- Title 24, California Building Energy Efficiency Standards
- International Green Construction Code (IgCC)
Supports insulation system design strategies that improve energy efficiency and maintain thermal performance at critical system points, such as pipe supports.
Sustainability & Transparency
- LEED® contribution support

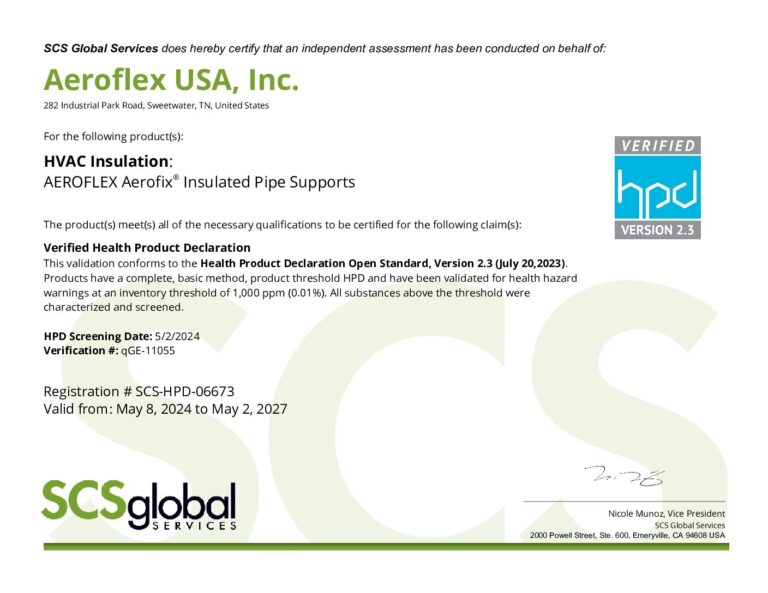

- Health Product Declarations (HPDs)
- International Green Construction Code®, Framework for sustainable building design and construction
Helps project teams meet sustainability goals through energy performance, material transparency, and responsible product selection.
Material Safety & Regulatory Compliance
- REACH
- RoHS
- CDPH Specification 01350, VOC emissions
- EPA TSCA Section 6(h); Toxic Substances Control Act (TSCA)and Persistent Organic Pollutants (POP’s)
- GREENGUARD Gold Certified for low chemical emissions
Supports specification on projects requiring low-emitting materials, chemical compliance, and adherence to evolving environmental regulations.
Product Certifications
Key Benefits
Maintain Continuous Insulation Performance
- Fully hermetic solution
- Prevents thermal bridging at pipe supports
- Preserves system design performance at critical points
Protect Against Moisture and CUI
- Zero-perm system design prevents vapor intrusion
- Reduces condensation risk at hanger locations
- Helps mitigate corrosion under-insulation (CUI)
Improve Installation Consistency
- Works with common pipe hanger systems
- Pre-fabricated design reduces field variability
- Compatible with elastomeric insulation systems
- Simplifies installation vs. built-up inserts
- Built-in, self-seal Protape® closure ensures fast installation
- Saves installation labor
Improve System Performance
- Resistant to UV, condensation, and heat gain
- Absorbs pipe vibration
- High strength, load-bearing — will not crush under active pipe loads
- Rigid, polymeric core maintains thermal efficiency
Durability and Reduced Lifecycle Cost
- Prevents premature system degradation
- Minimizes maintenance and repair needs
- Supports long-term energy efficiency
Aerofix insulated pipe supports are designed to support compliance with key industry standards, building codes, and material transparency requirements for commercial, institutional, and industrial projects.
- Maintain continuous insulation performance
- Protect against moisture and CUI
- Improve installation consistency
- Improve system performance
- Durability
- Reduced lifecycle cost
Market Sectors
- Commercial
- Institutional
- Industrial
Applications
HVAC & Mechanical Systems
- VRF/VRF systems
- Chilled water piping
- Condensate lines
- Low-pressure steam
Refrigeration Systems
- Ammonia refrigeration
- Halo-carbon refrigeration
- Refrigerated piping systems
Industrial & Process Piping
- Brine systems
- Process cooling lines
- Low-temperature applications
Plumbing Systems
- Domestic cold and hot water piping
Ideal for any application requiring insulated pipe supports that maintain continuous insulation and vapor barrier performance at hanger locations.
Performance Properties
Aerofix insulated pipe supports are engineered to deliver consistent thermal, moisture, and mechanical performance:
Temperature Range
Continuous Service Temperature: -328°F to 257°F (-200°C to 125°C)
Thermal Performance
Thermal Conductivity (Btu·in./hr·ft2·°F): 0.245
Moisture Resistance
Water Vapor Permeability (Perm·inch): 0.00
Fire Performance
Self-extinguishing (ASTM D635)

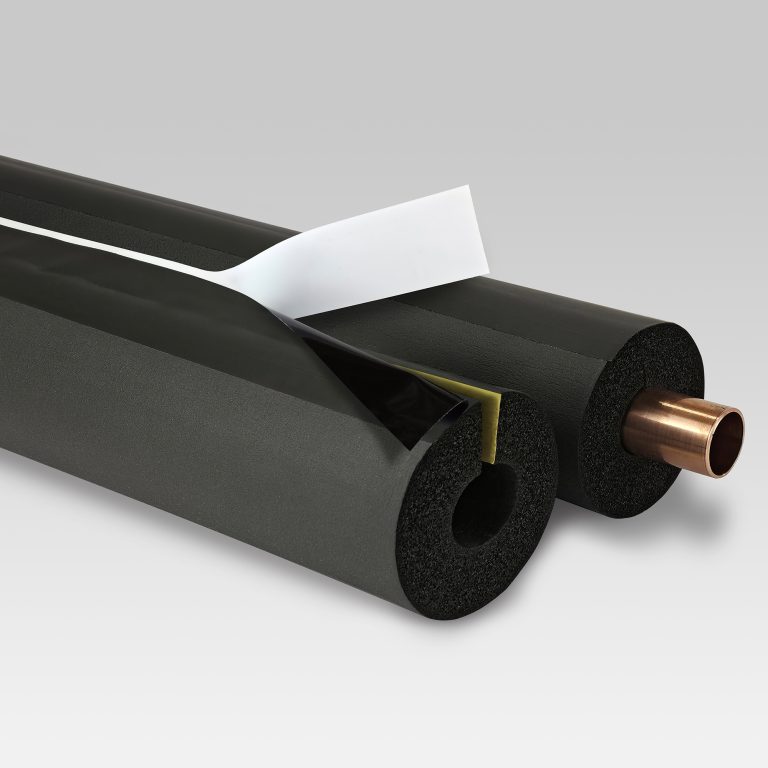

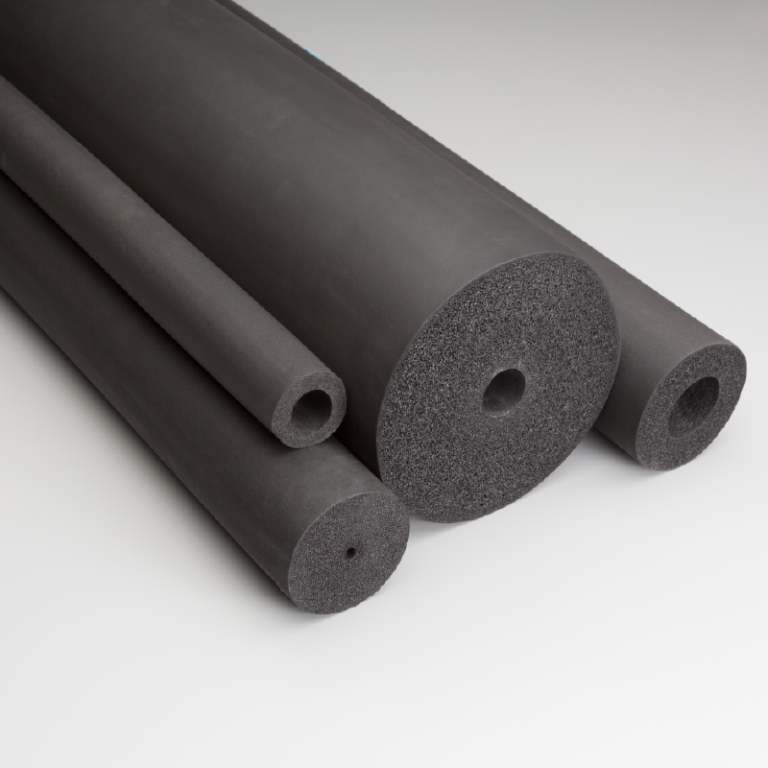

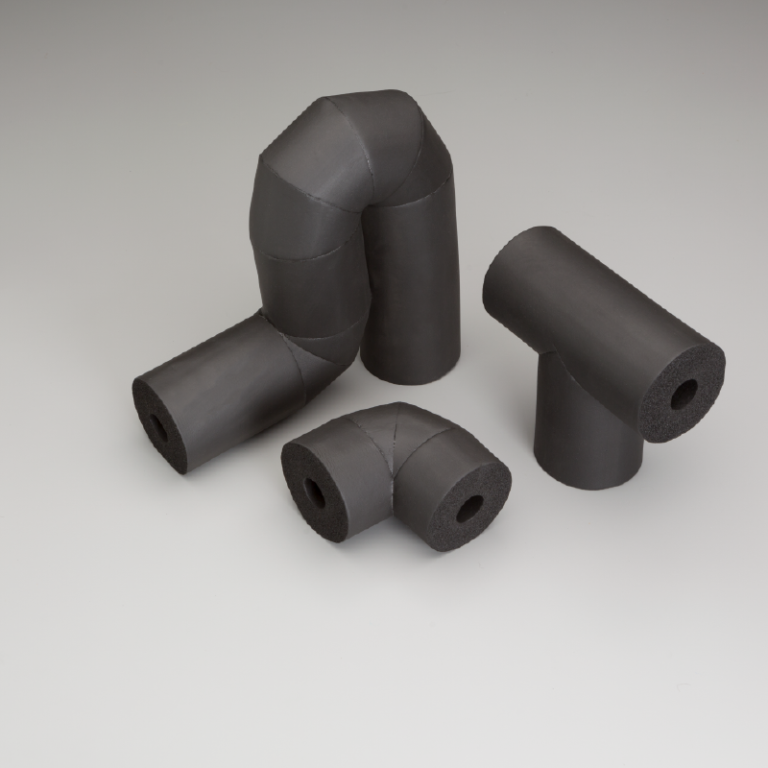

Related AEROFLEX® Insulation Products

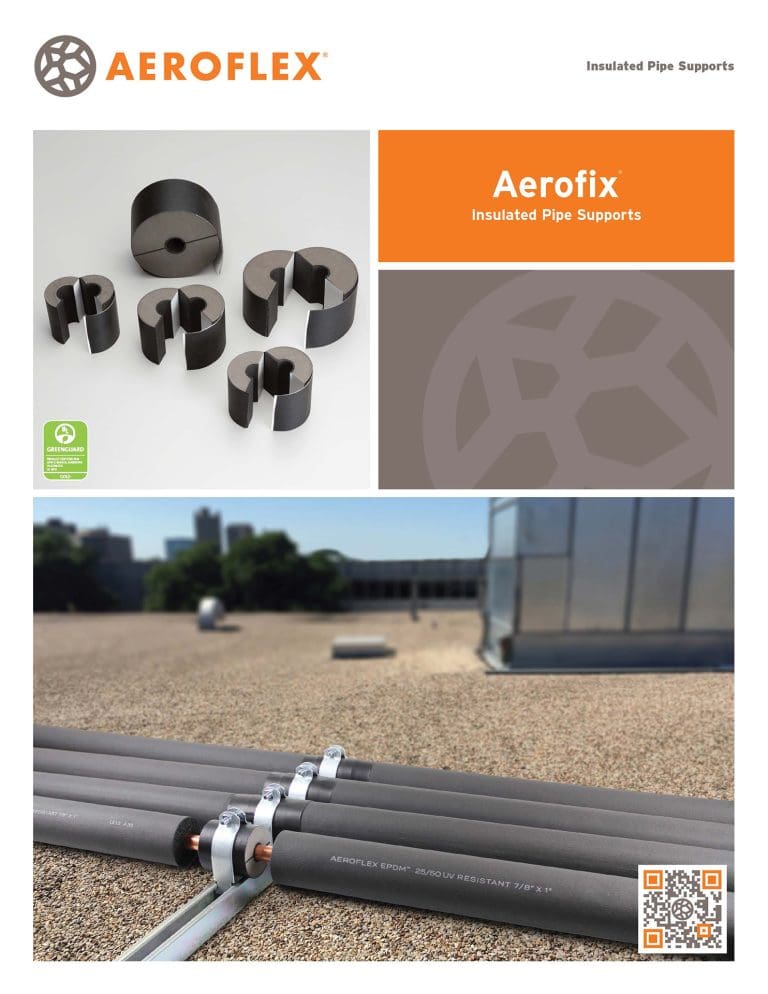

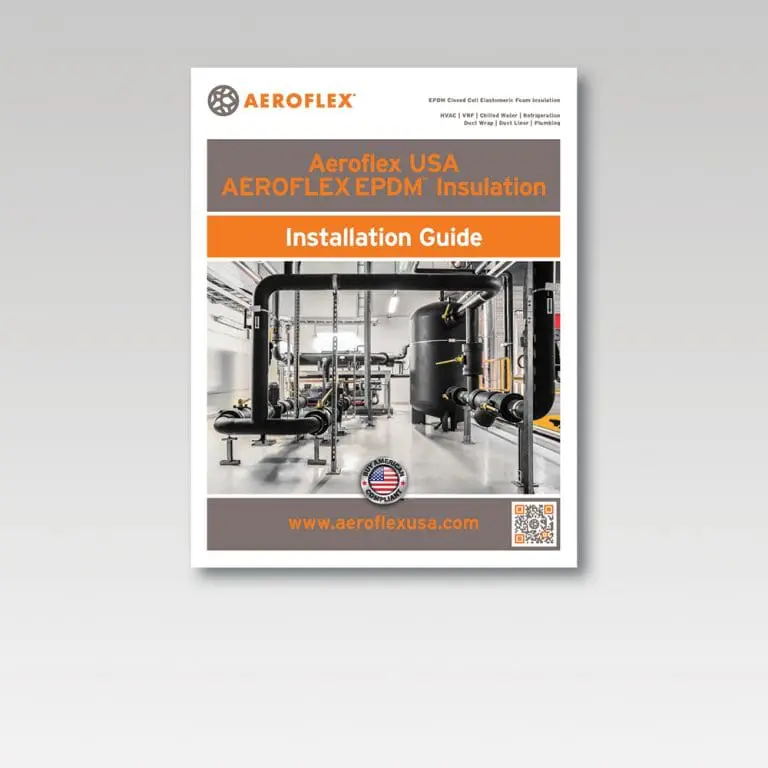

Technical Resources and Literature
