AEROFLEX Self-Seal LDP Pipe Insulation

Description

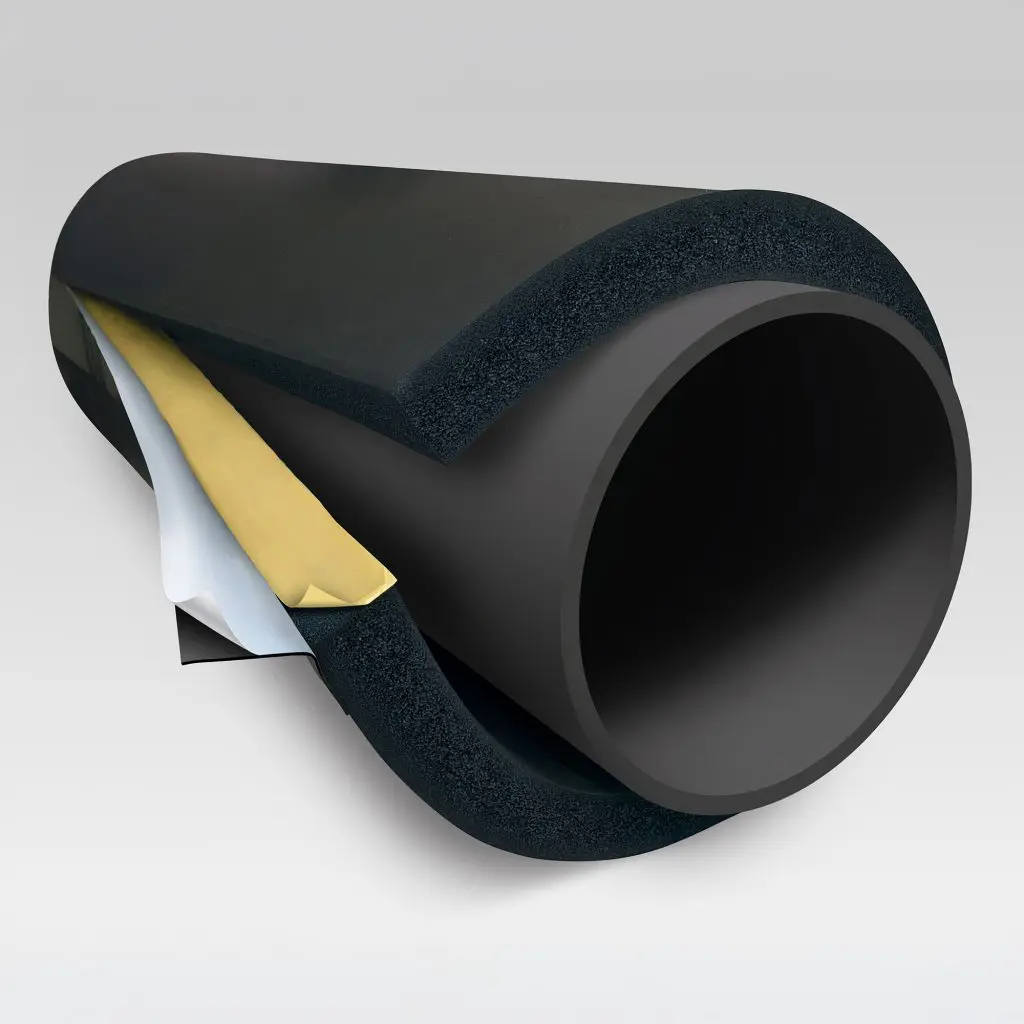

AEROFLEX Self-Seal LDP™ Pipe Insulation has everything you would expect from a closed-cell elastomeric pipe insulation – flexibility, moisture resistance, low thermal conductivity and more. Plus, it has all the added convenience of a pre-slit dual tape closure for faster installation of the entire tube, including overlapping AEROFLEX Self-Seal Seam Tape® seam closure, is made of nonpolar EPDM rubber, providing users with superior condensation control and protection against moisture intrusion, UV and ozone. Our dual tape system includes pre-applied adhesive at the joined surfaces and the overlapping AEROFLEX Self-Seal Seam Tape® for a more secure installation.

Available in IDs from 8" to 16" IPS and wall thicknesses up to 2". Pre-formed 3-foot tube lengths improve installation efficiency on large-diameter piping*. See technical data sheet for available sizes and thicknesses.

Color: Black.

Specification Compliance

  • ASHRAE Standard 90.1, Energy Standard for Buildings Except Low-Rise Residential Buildings
  • ASHRAE Standard 189.1, International Green Construction Code®
  • Buy American
  • California Title 24, Building Energy Efficiency Standards
  • CAN/ULC-S102
  • CDPH Specification 01350, VOC emissions
  • EPA TSCA Section 6(h)
  • IECC, International Energy Conservation Code
  • LEED®
  • REACH
  • RoHS

Key Benefits

  • Efficient, low thermal conductivity
  • Long lasting – Excellent UV AND Moisture Resistance
  • Thin pliable lap tape with quick-release liner increases installation efficiency.
  • Engineered with Avery Dennison COLD TOUGH™ adhesive technology, approved for cold weather installation to 0ºF (-18ºC)
  • Environmental Product Declarations (EPD’s)
  • Health Product Declarations (HPD’s)
  • GREENGUARD Gold Certified for low chemical emissions
  • No CFCs, HFCs, HCFCs, PBDEs, formaldehyde, Nitrosamine or fibers
  • Self-Seal LDP significant labor when insulating large diameter piping (8" to 16" IPS)
  • No supplemental vapor barrier required for most applications**
  • Suitable for interior & exterior applications***

* May require some field fabrication.
**Supplemental vapor barrier may be required in extreme lowtemperature
or high-humidity applications. Protective jacket
required for direct-bury applications and if insulation may be
subjected to mechanical damage.
***For exterior applications, Aerocoat®, Aerocoat LVOC®, or an
insulation jacket are recommended for UV protection to maximize
the insulation’s life cycle.

Applications

  • HVAC
  • VRF
  • Chilled Water
  • Refrigeration
  • Hot and Cold Water Plumbing

Performance Properties

Temperature Range
Continuous Operating Temperature Range: -30°F to 257°F (-34°C to 125°C) — ASTM C411

Thermal Performance
Thermal Conductivity @ 75°F (Btu·in./hr·ft²·°F): 0.245 — ASTM C177/C518

Moisture Resistance
Water Vapor Permeability (Perm·inch): 0.02 — ASTM E96

Corrosion Performance
Non-Corrosive on Stainless Steel — ASTM C692

Surface Burning/Flammability
< 25 FSI, < 50 SDI (25/50) — ASTM E84, UL 723, CAN/ULC-S102 (through 2" wall thickness)
Plenum-Rated — NFPA 90A/90B
Self-Extinguishing — ASTM D635

Density
3.0–6.0 lb/ft³ — ASTM D1667
