AEROFLEX EPDM™ Sheet & Roll Insulation

TECHNICAL DATA SHEET
View/download data sheet.
SDS
View/download safety data sheet
ECO DATA
View/download eco data

AEROFLEX EPDMTM

SINGLE SOURCE SOLUTIONS!
AEROFLEXÂŽ offers single-source hermetic system accessories, including EPDM fitting covers, insulated pipe supports, specialty contact adhesives, tapes, and coatings, and are covered by an express limited warranty.
LEARN MORE

AEROFLEX EPDM™ Sheet & Roll Insulation

Description

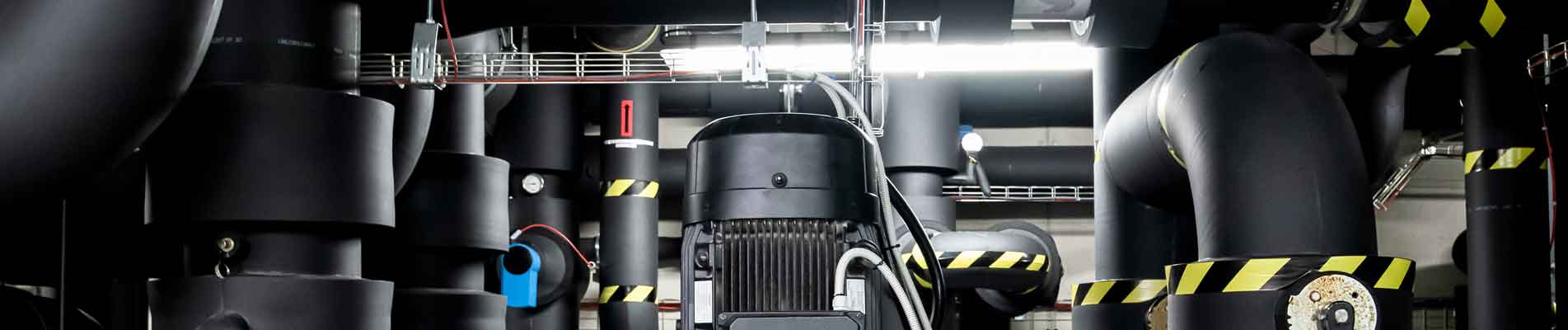

Large-diameter pipes, chillers, tanks, vessels, and equipment present a set of insulation challenges that differ from standard pipes. Bigger surfaces, more seams, and more exposure to demanding operating environments increase mechanical stress over the life of the system. Unfortunately, in some cases short cuts can lead to  moisture ingress, energy loss, and premature system breakdown due to corrosion under insulation (CUI).

AEROFLEX EPDM Sheet & Roll is a closed-cell elastomeric foam insulation engineered for these specific applications. Made with a proprietary blend of nonpolar  EPDM synthetic rubber, it resists water absorption and UV degradation when compared to standard NBR/PVC insulation, with a built-in vapor retarder that eliminates the need for a supplemental vapor barrier in most applications. Our smooth durable sheets and rolls are ideal for large pipes, fittings, chillers, tanks, and equipment.

AEROFLEX EPDM Sheet & Roll is available in a wide range of thicknesses to meet condensation control and energy code requirements. See data sheet for thicknesses and corresponding R-values.

Most thicknesses are available with or without a low-VOC, pressure-sensitive adhesive (PSA) back for faster installation.

Specification Compliance

Energy Efficiency & High-Performance Building Standards

  • ASHRAE Standard 90.1, Energy Standard for Buildings Except Low-Rise Residential Buildings
  • IECCÂŽ, International Energy Conservation CodeÂŽ
  • ASHRAE Standard 189.1, Standard for the Design of High-Performance Green Buildings Except Low-Rise Residential Buildings
  • Title 24, California Building Energy Efficiency Standards

Meets minimum pipe insulation thickness and R-value requirements of IECCÂŽ and ASHRAE 90.1.

Sustainability & Transparency

  • Leadership in Energy & Environmental Design (LEEDÂŽ)contributions
  • Environmental Product Declaration (EPD)
  • Health Product Declaration (HPD)
  • GREENGUARD Gold Certified for low chemical emissions

Helps project teams meet sustainability goals through energy performance, material transparency, and responsible product selection.

Material Safety & Regulatory Compliance

  • REACH
  • RoHS
  • CDPH Specification 01350, VOC emissions
  • EPATSCA Section 6(h); Toxic Substances Control Act (TSCA) and Persistent Organic Pollutants (POP’s) PFAS
  • Buy American
  • Build America, Buy America Act (BABA)

Supports specifications for projects requiring low-emitting materials, chemical compliance, and adherence to evolving environmental regulations.

Key Benefits

Fast, Simple Installation

  • Available with acrylic pressure-sensitive adhesive (PSA) peel & stick back
  • Built-in vapor retarder, no supplemental vapor barrier required for most applications*
  • Wide range of sizes and thicknesses to match code and condensation control requirements

Thermal & Acoustic Performance

  • Efficient, with low thermal conductivity
  • Attenuates problematic, lower-frequency mechanical noise (250-500 Hz range)

Protection Against Moisture & CUI

  • Nonpolar EPDM does not induce or react with water (hydrophobic)
  • Non-corrosive on stainless steel and copper piping
  • Water vapor permeability =  0.02 perm-inch

Fire Safety

  • 25/50 rated (ASTM E84, UL723, CAN/ ULC-S102), NFPA 90A/90B, and self-extinguishing (ASTM D635) thru 2-inches thick

Durability & Environmental Stability

  • Long lasting – Excellent UV AND Moisture Resistance
  • Naturally mold- and fungi-resistant
  • Suitable for interior and exterior applications**

Material Transparency & Indoor Air Quality

  • GREENGUARD Gold Certified for low chemical emissions
  • Environmental Product Declarations (EPD’s); Product-Specific Type III
  • Health Product Declarations (HPD’s); 3rd-party verified
  • Fiber-free, non-particulating
  • Ultra-low PVC content — less than 1%
  • No CFCs, HFCs, HCFCs, PBDEs, formaldehyde, nitrosamine or fibers

AEROFLEX EPDM™ Sheet & Roll is engineered to support compliance with key industry standards, building codes, and material transparency requirements for commercial, institutional, mission critical, and industrial projects.

*Supplemental vapor barrier may be required in extreme low-temperature or high-humidity applications. Protective jacket required for direct-bury applications and where insulation may be subjected to mechanical damage.

**For exterior applications, AerocoatÂŽ, Aerocoat LVOCÂŽ, or an insulation jacket are recommended for UV protection to maximize the insulation's life cycle.

Applications

HVAC & Mechanical Systems

  • Chilled water piping & equipment

Refrigeration Systems

  • Ammonia refrigeration
  • Halo-carbon refrigeration
  • Refrigerated piping systems

Industrial & Process Piping

  • Brine systems
  • Process cooling lines
  • Low-temperature applications

Plumbing Systems

  • Domestic cold and hot water piping & equipment

Performance Properties

AEROFLEX EPDM™ Sheet & Roll is engineered to provide a durable and reliable thermal, mechanical, and moisture resisting performance:

Continuous Operating Temperature Range
-297°F to 257°F ( -183°C to 125°C); -22°F to 248°F (-30°C to 120°C) with PSA

Thermal Performance
Thermal Conductivity @ 75°F (Btu¡in./hr¡ft2¡°F): 0.245

Moisture Resistance
Water Vapor Permeability (Perm¡inch): 0.02

Corrosion Protection
Non-corrosive on stainless steel (ASTM C692)

Fire Performance
Surface Burning/Flammability: < 25 FSI, < 50 SDI (25/50) (ASTM E84, UL723, CAN/ULC-S102)* Plenum-Rated: NFPA 90A/90B Self-extinguishing (ASTM D635) *Through 2-inch wall thickness Density: 3.0-6.0 lb/ft3 ASTM D1667

AEROFLEX EPDM Sheet & Roll is designed to comply with key industry standards, building codes, and material transparency requirements for commercial, institutional, and industrial projects.
